Hot Little Therm - Probe Stick Adapter

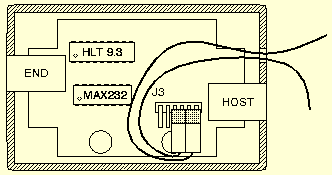

You can attach one or two temperature probes directly to the I/O connector on the Hot Little Therm circuit board. The following figure shows how two probes are plugged in.


Connecting Probes to Hot Little Therm

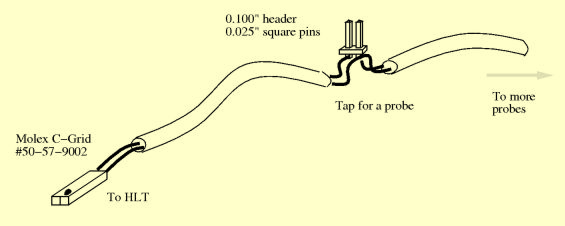

Because the probes are actually all connected on a bus, you can also add any number of additional ones outside the box, by doing your own wiring. Here is one way you might do that:


External Probe Wiring

The Probe Stick is designed to make it easy to add several probes without having to do any wiring. It plugs directly onto the connector on the Therm board, allowing up to eight probes to connect.


Probe Stick Adapter
